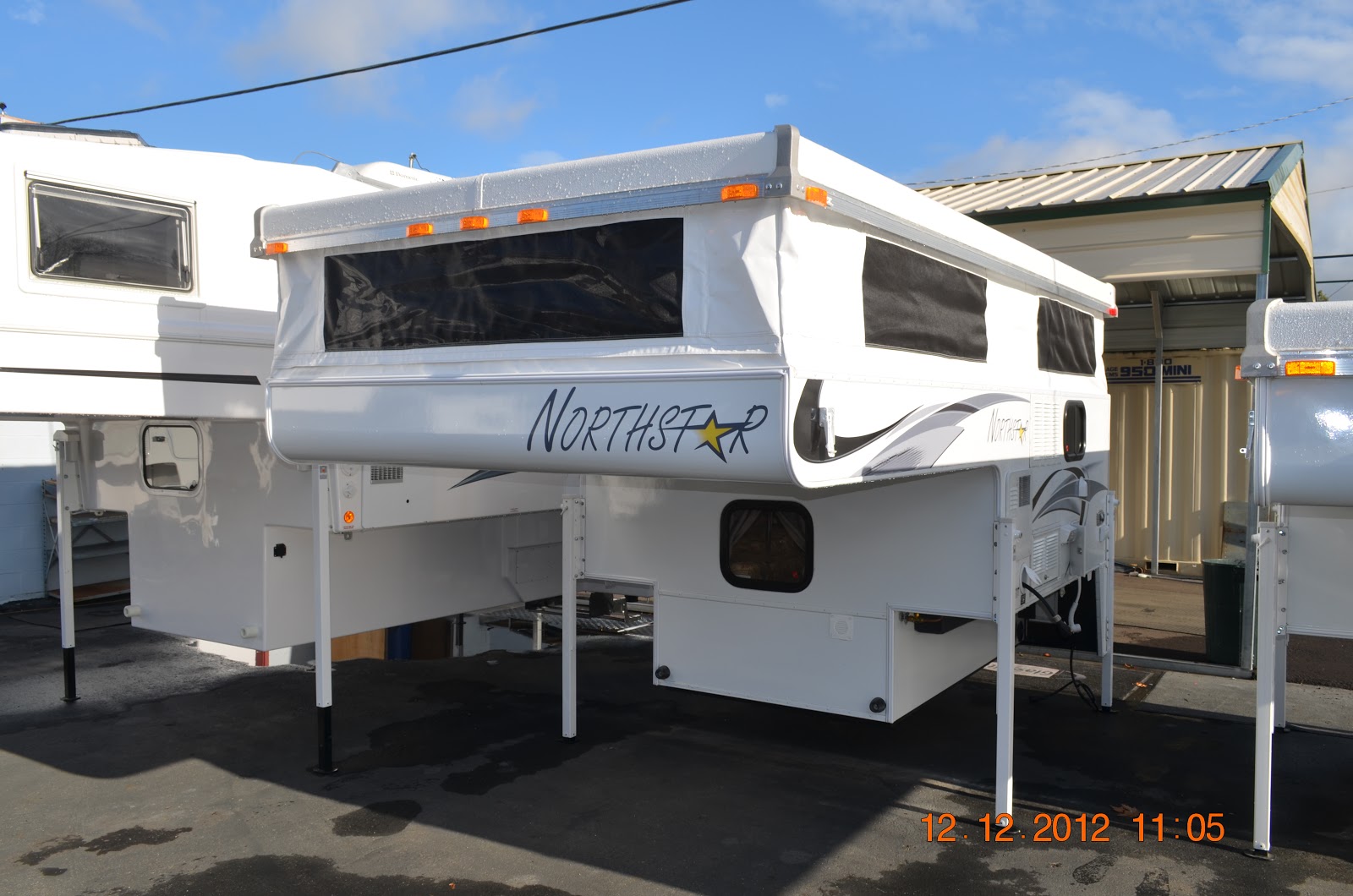

Northstar, TC650
The TC650 Pop-Up will fit all full-size Short Bed trucks
Product Information
Specifications
| Base Dry Weight (pounds) |
1,345
|
| Closed Body Height |
5′ 6″
|
| Interior Height – Open |
6′ 11″
|
| Interior Height – Closed |
4′ 11″
|
| Exterior Width |
7′
|
| Overall Length |
11′
|
| Floor Length |
6′ 8″
|
| Approximate Center of Gravity (measured from front of truck bed toward rear) |
22″
|

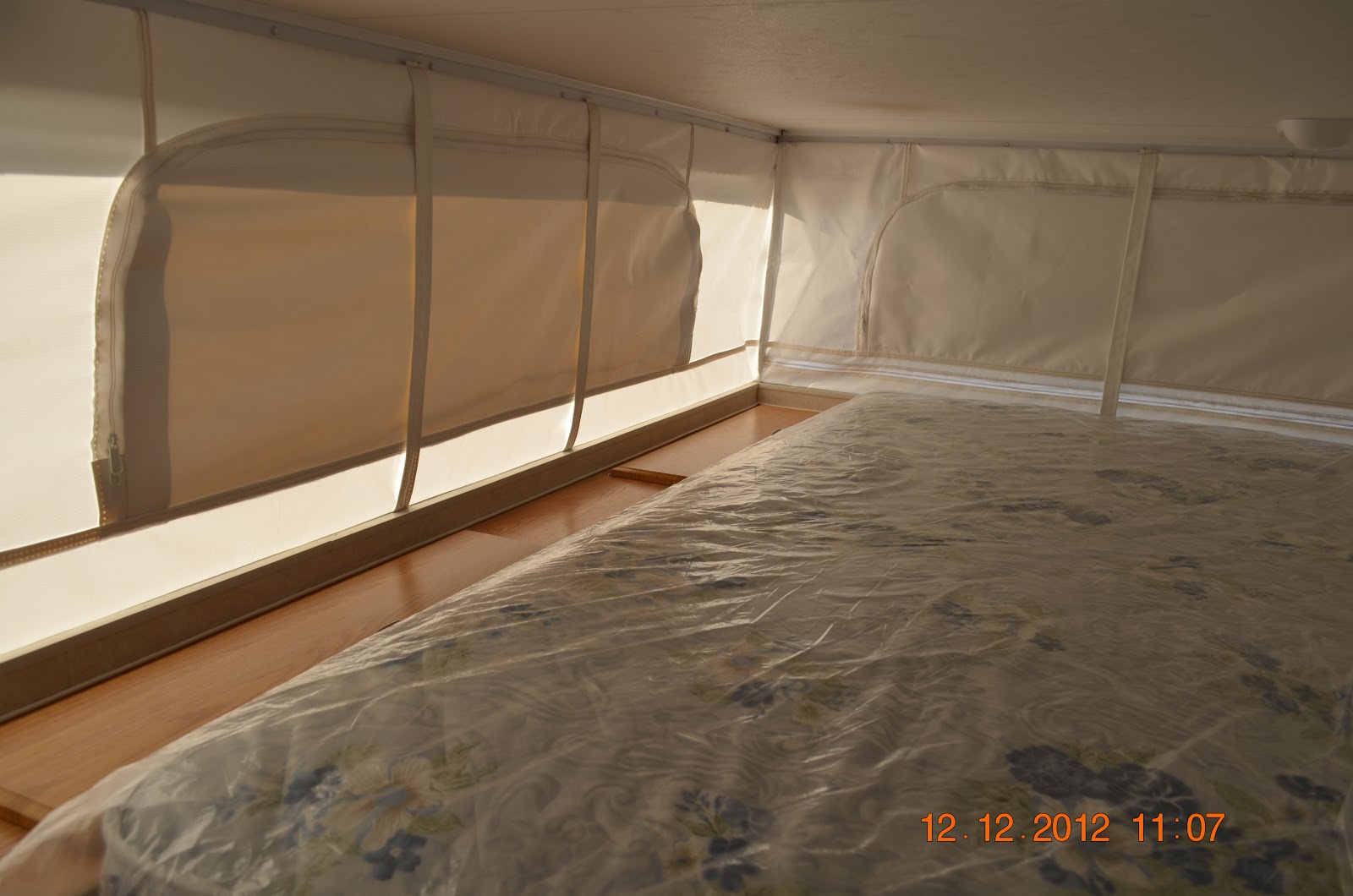

| Cabover Bed Size – Standard |
56″ x 80″
|
| Cabover Bed Size – Extended (Opt #26) |
60″ x 80″
|

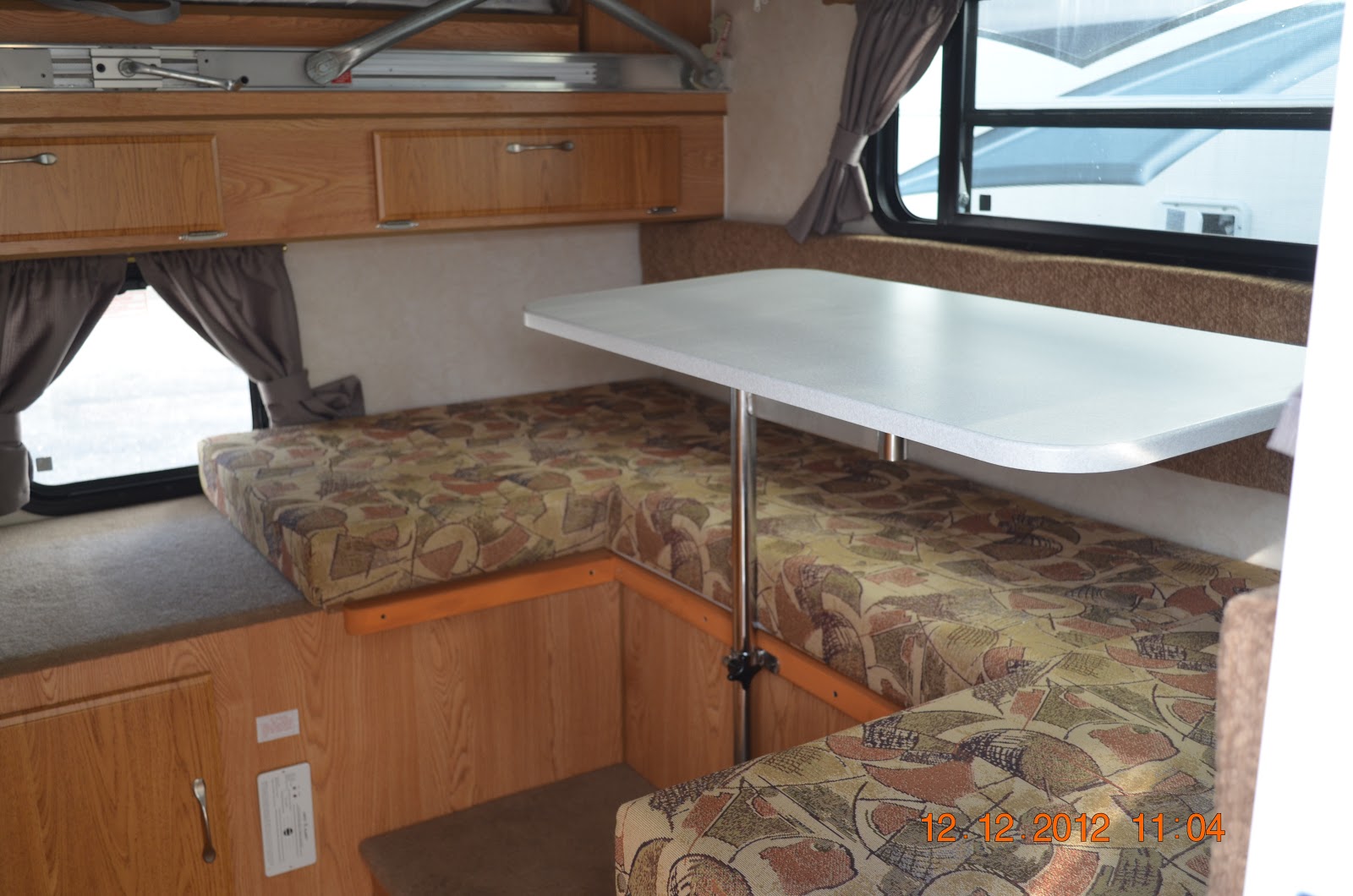

| Dinette Bed Size – Standard |
36″ x 79″
|
| Mattress to Roof Height – Open |
23″
|
| Mattress to Roof Height – Closed |
4″
|
| Fresh Water Tank (gallons) |
30
|
STANDARD OPTIONS:

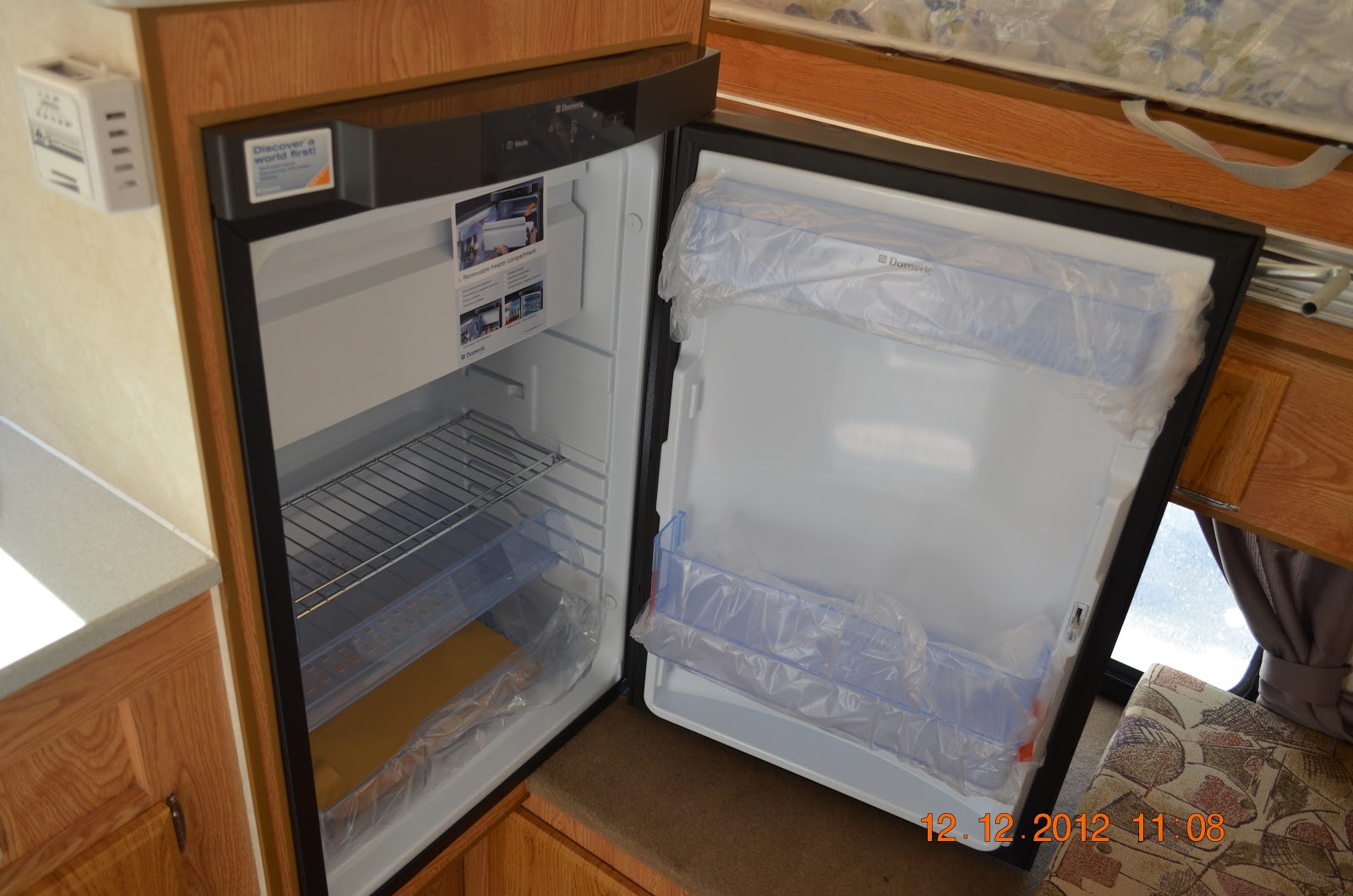

Dometic 3.7′ 3-Way Refrigerator
16,000 BTU Auto Ignition Furnace

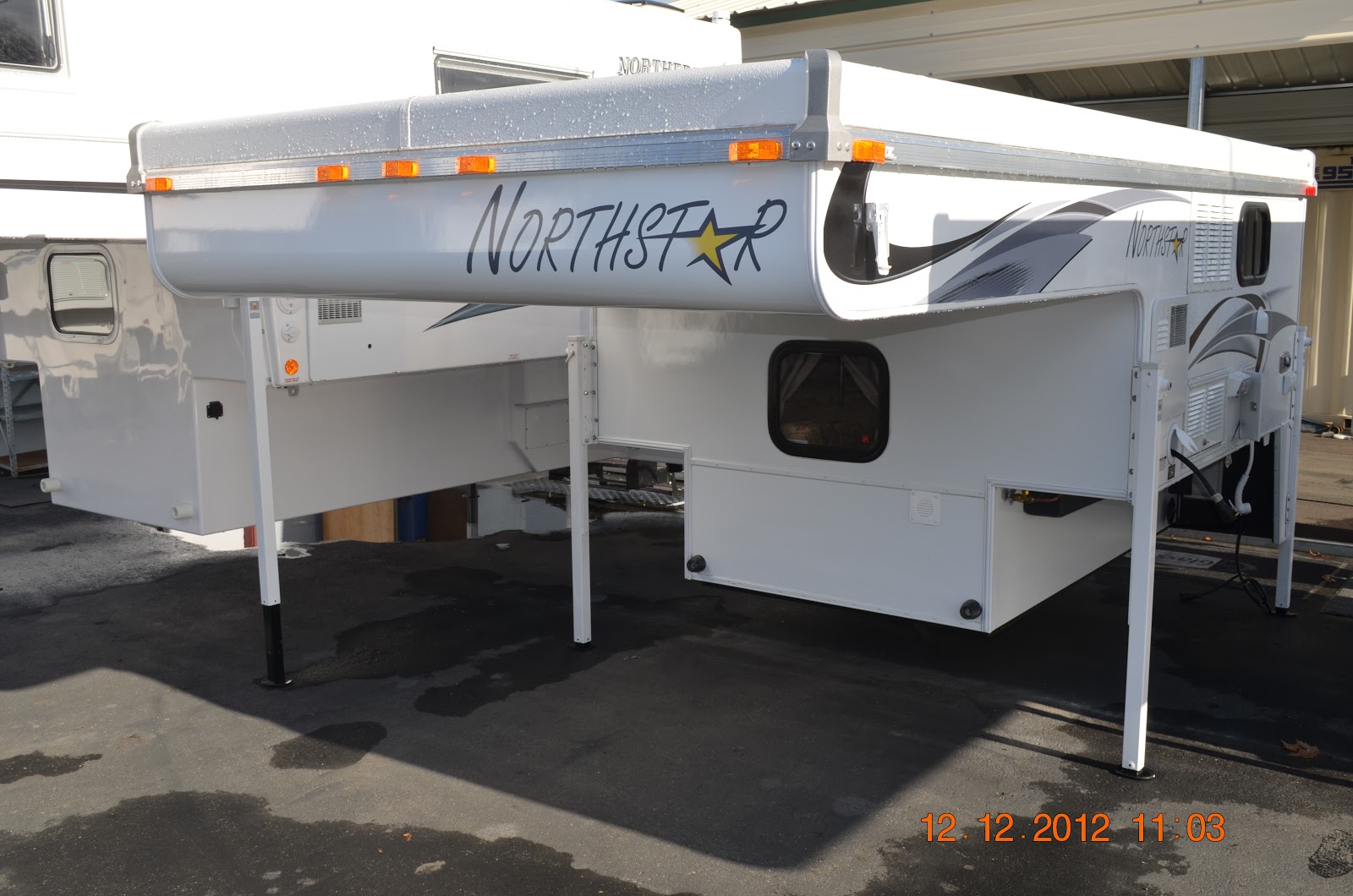

4-Corner Mechanical Jacks

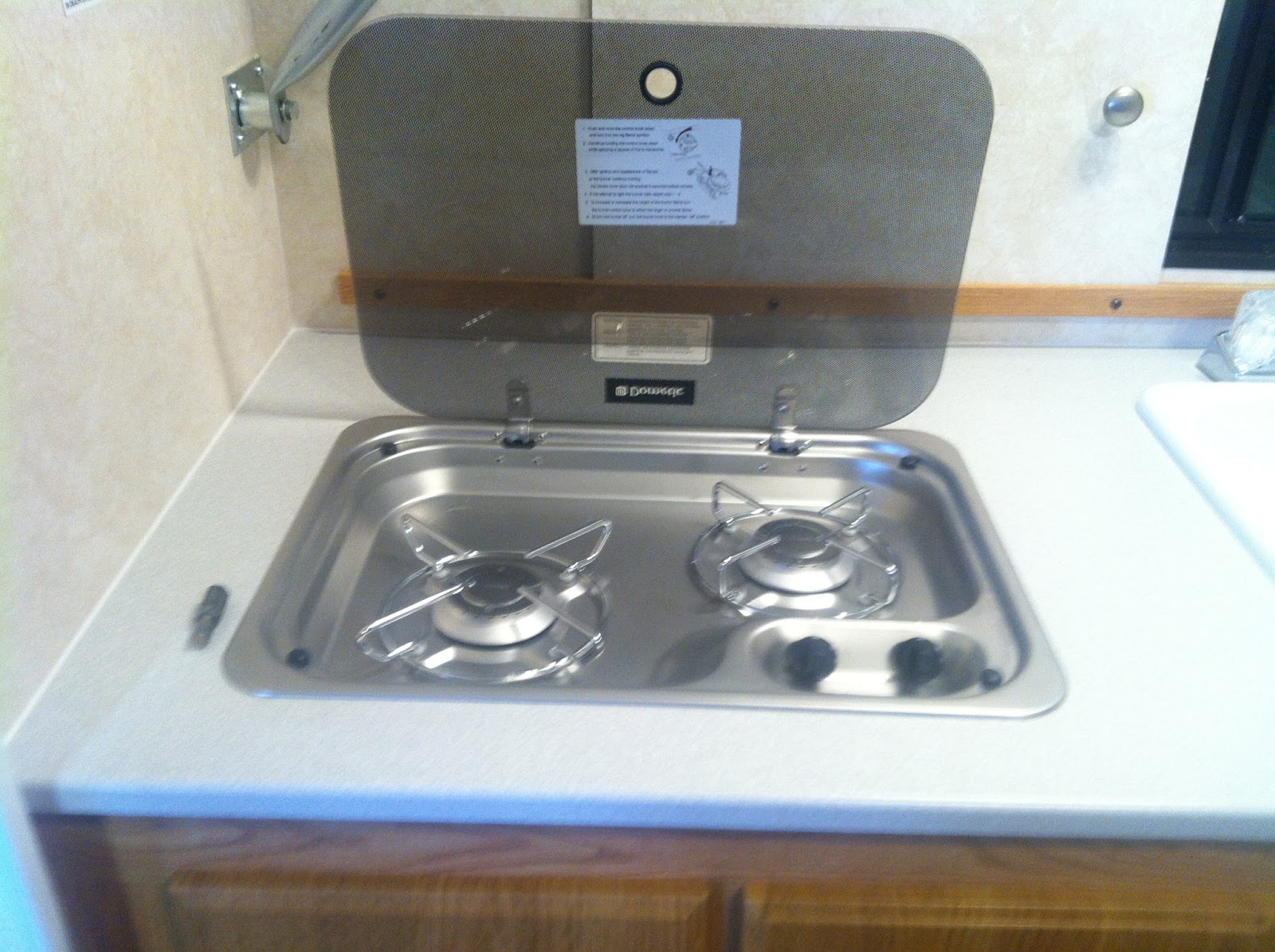

2 Burner Stove

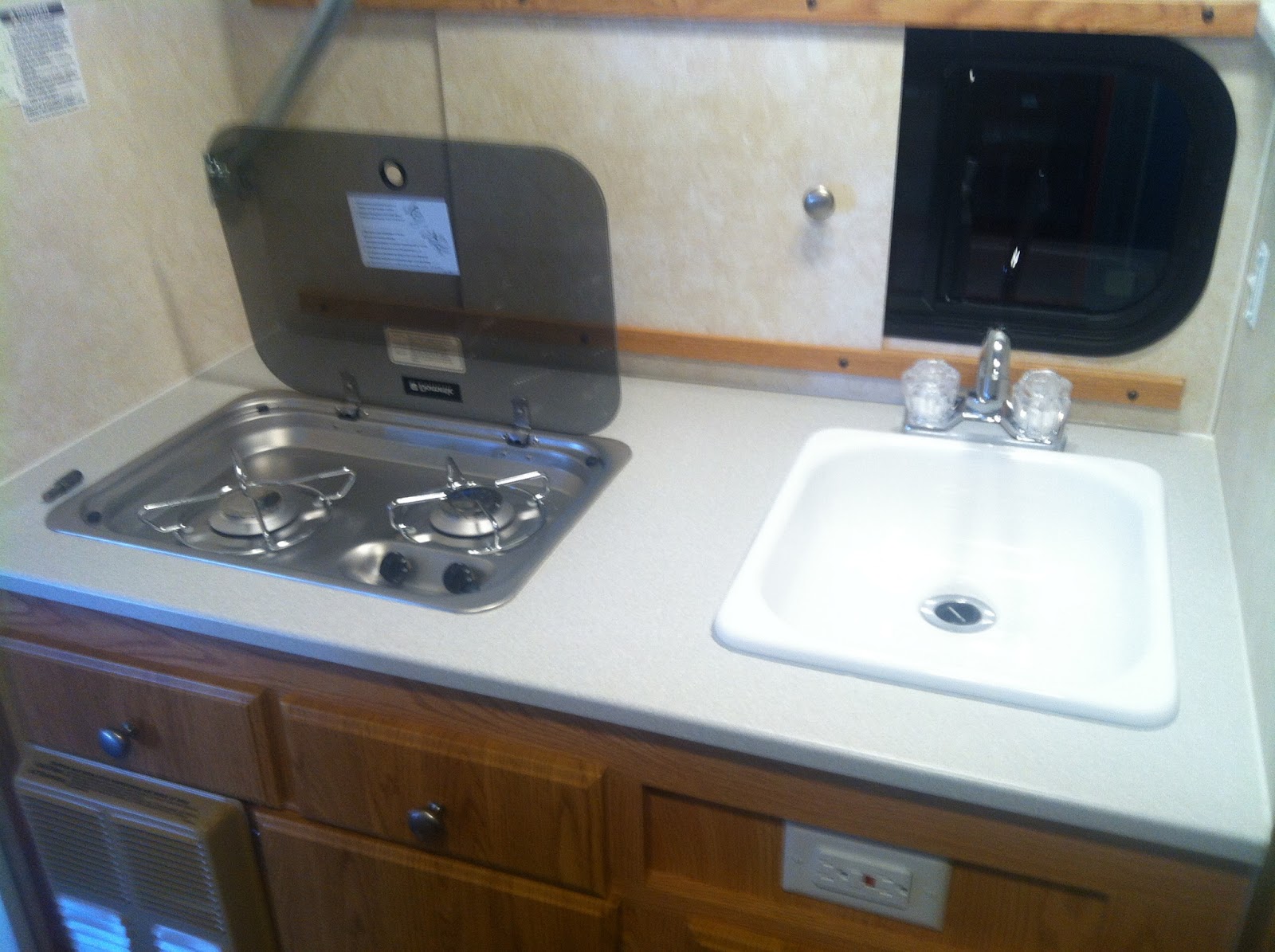

Single Sink w/ 12v Mini Pump
30 Gallon Fresh Water Tank
City Water Inlet
Marine Grade Ultra Light Plywood
Block Foam Insulation
Insulated Floor
.024 Aluminum Siding
25 Amp Converter w/ Charger
7-Way Plug w/ Holder
30 Amp Power Cord w/ Adaptor
LPG, Carbon Monoxide, Smoke Detectors
20 lb LPG Tank w/ Gauge
Pop-Out Front Window
Radius Tinted Window w/ Crankout Jal
Slider Galley Window w/ Screen

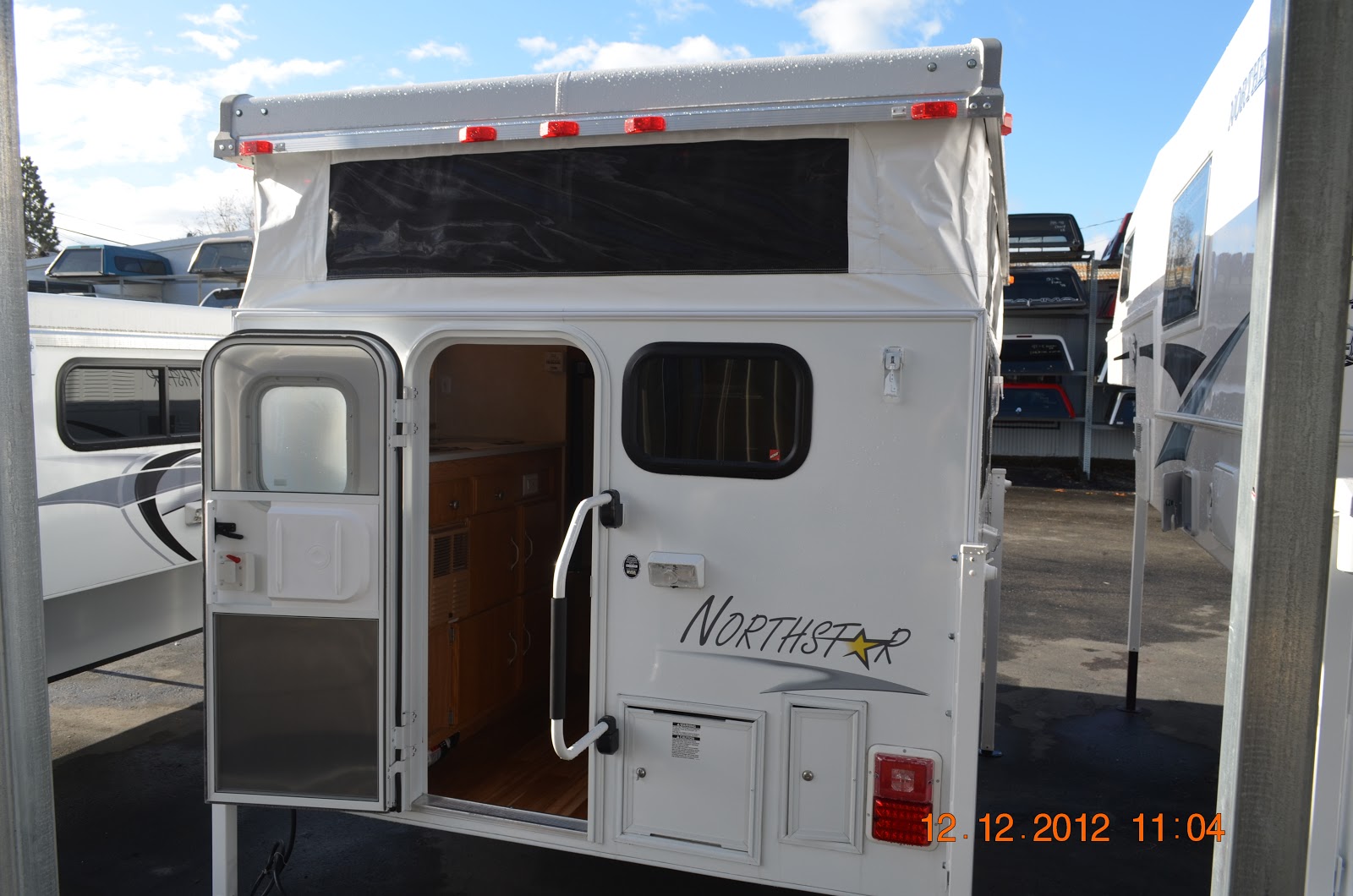

Screened Entrance Door w/ Deadbolt

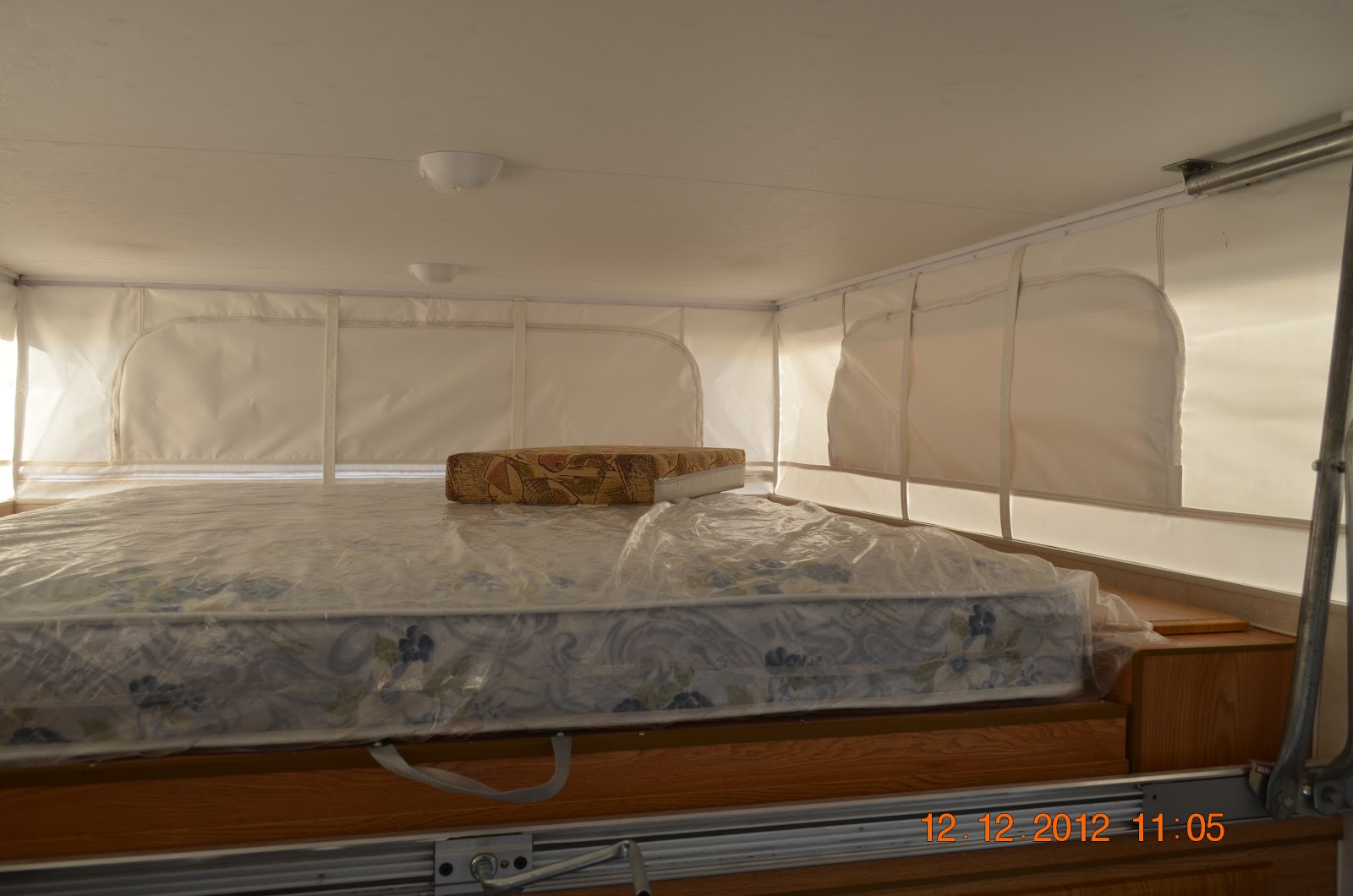

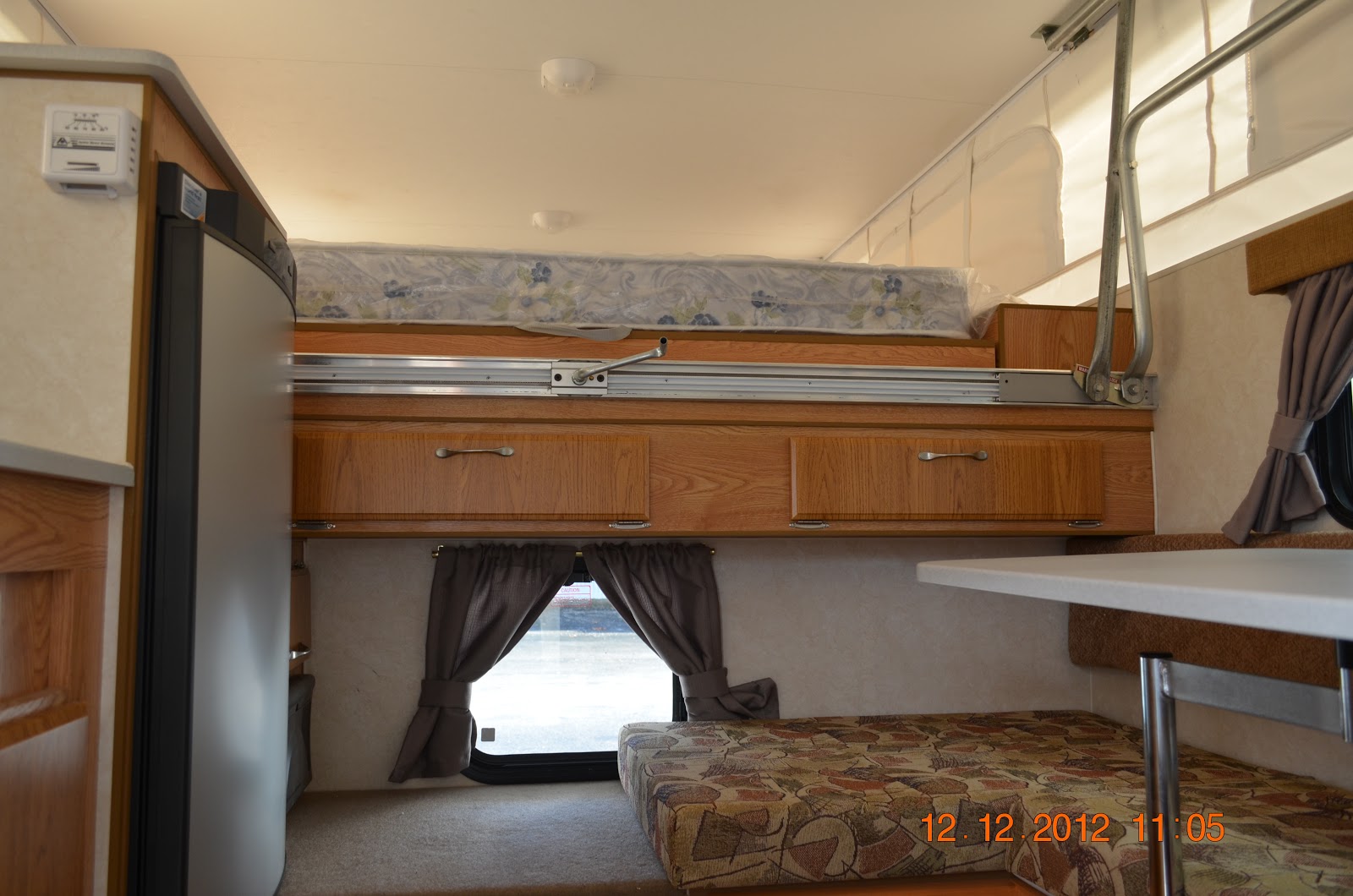

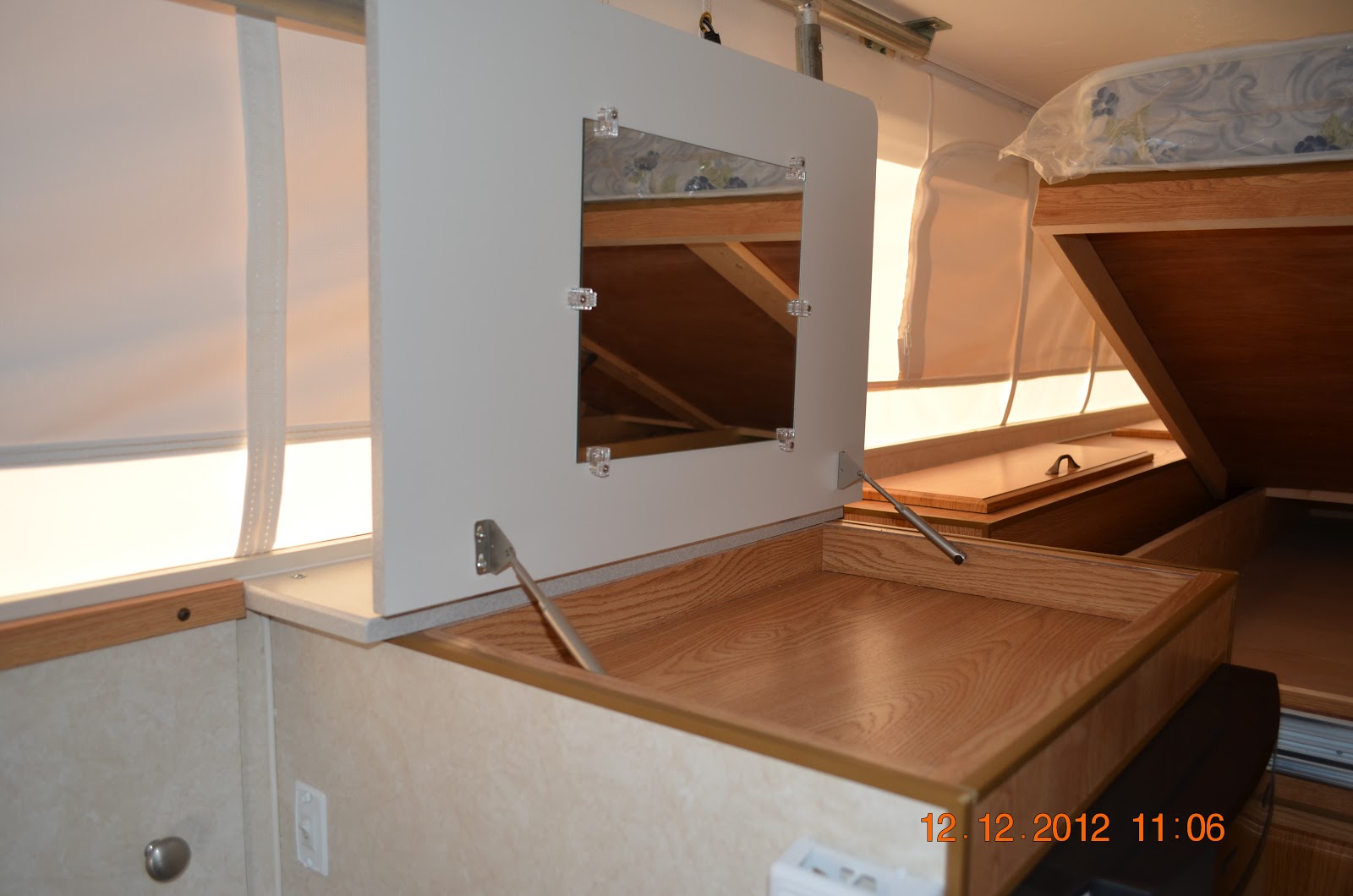

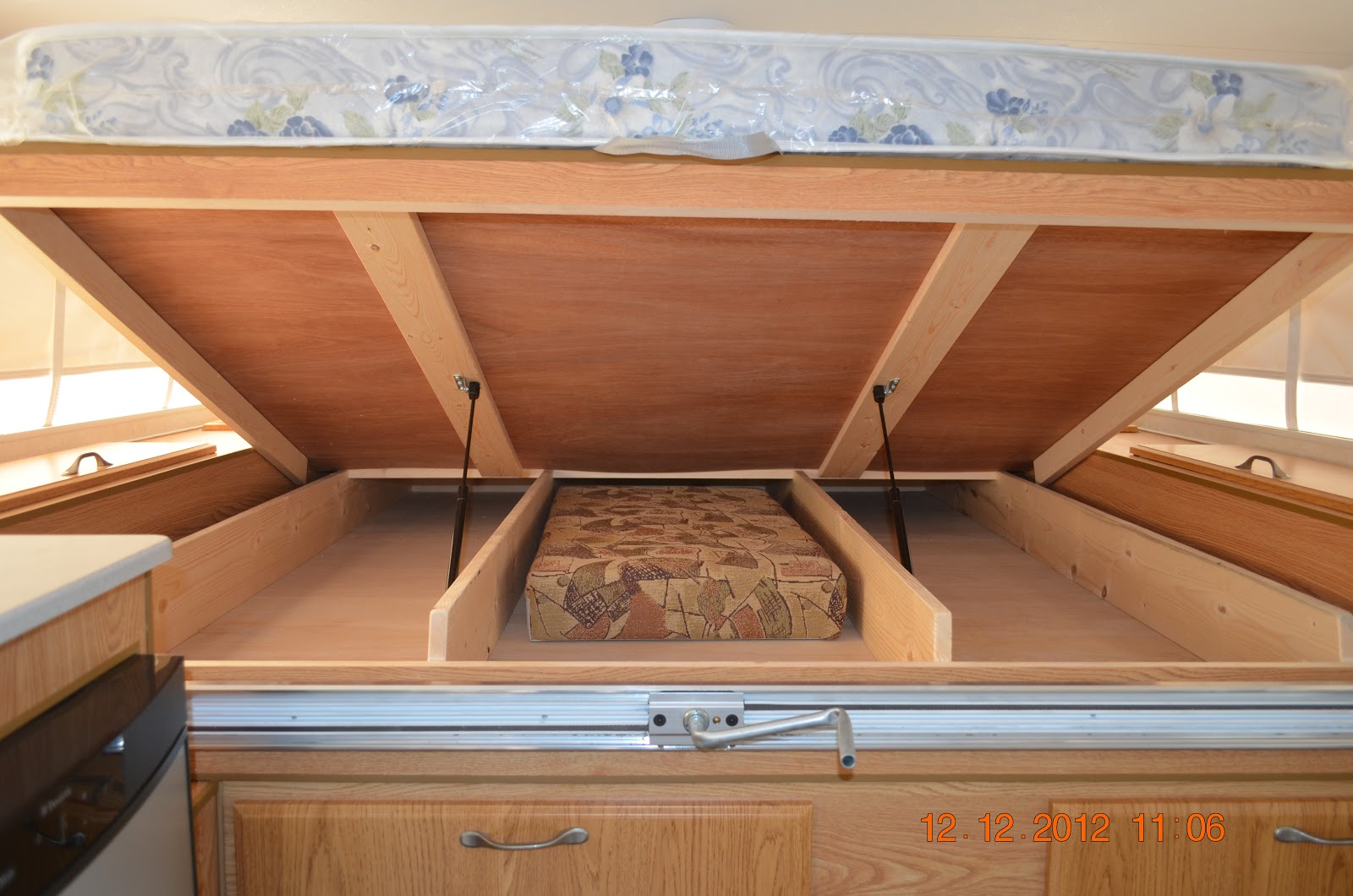

Lift-Up Cabover Bed w/ 2 Gas Struts

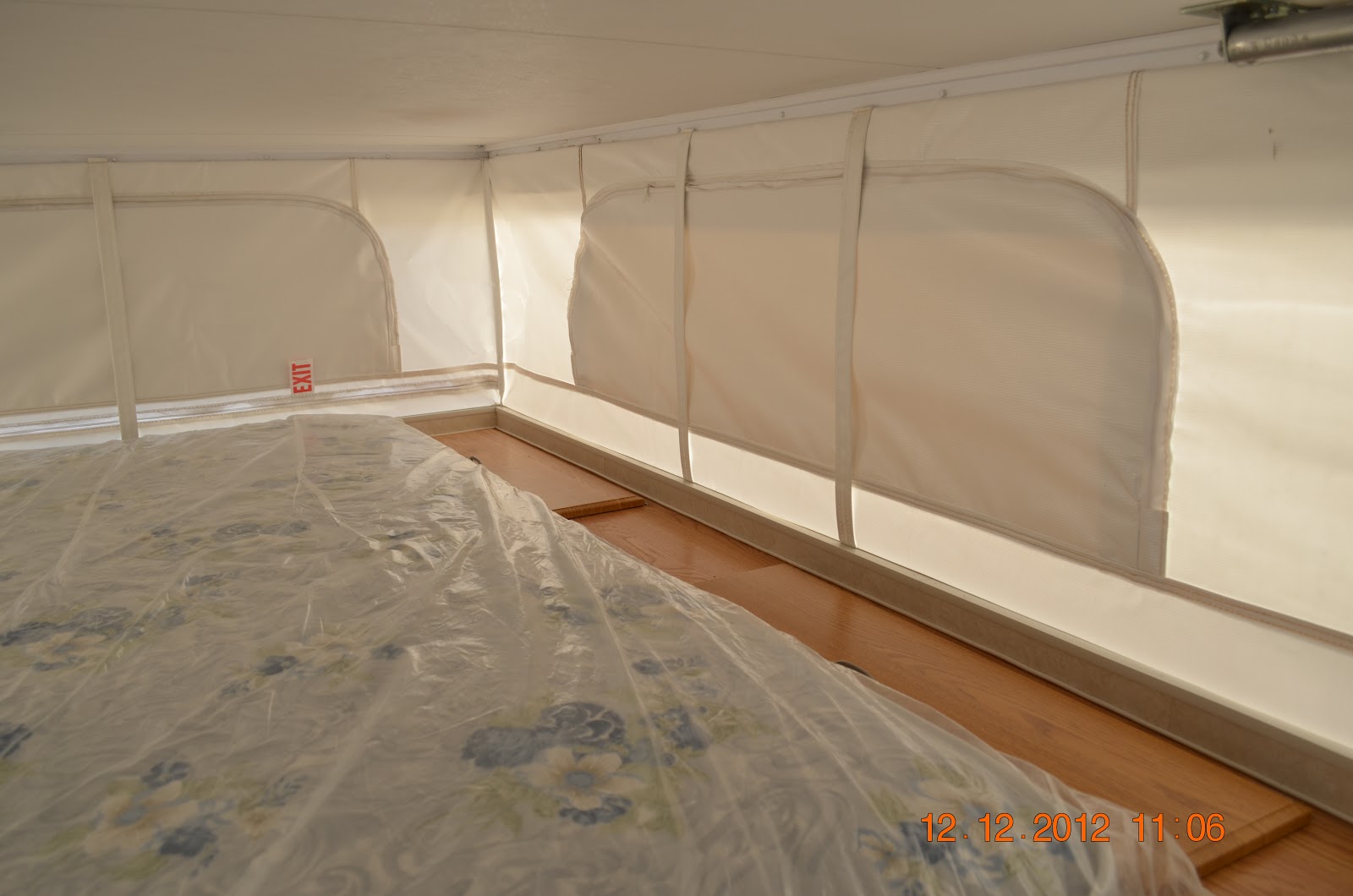

Innerspring Mattress
Front Rubber Bumpers
Exterior Side Lockable Storage

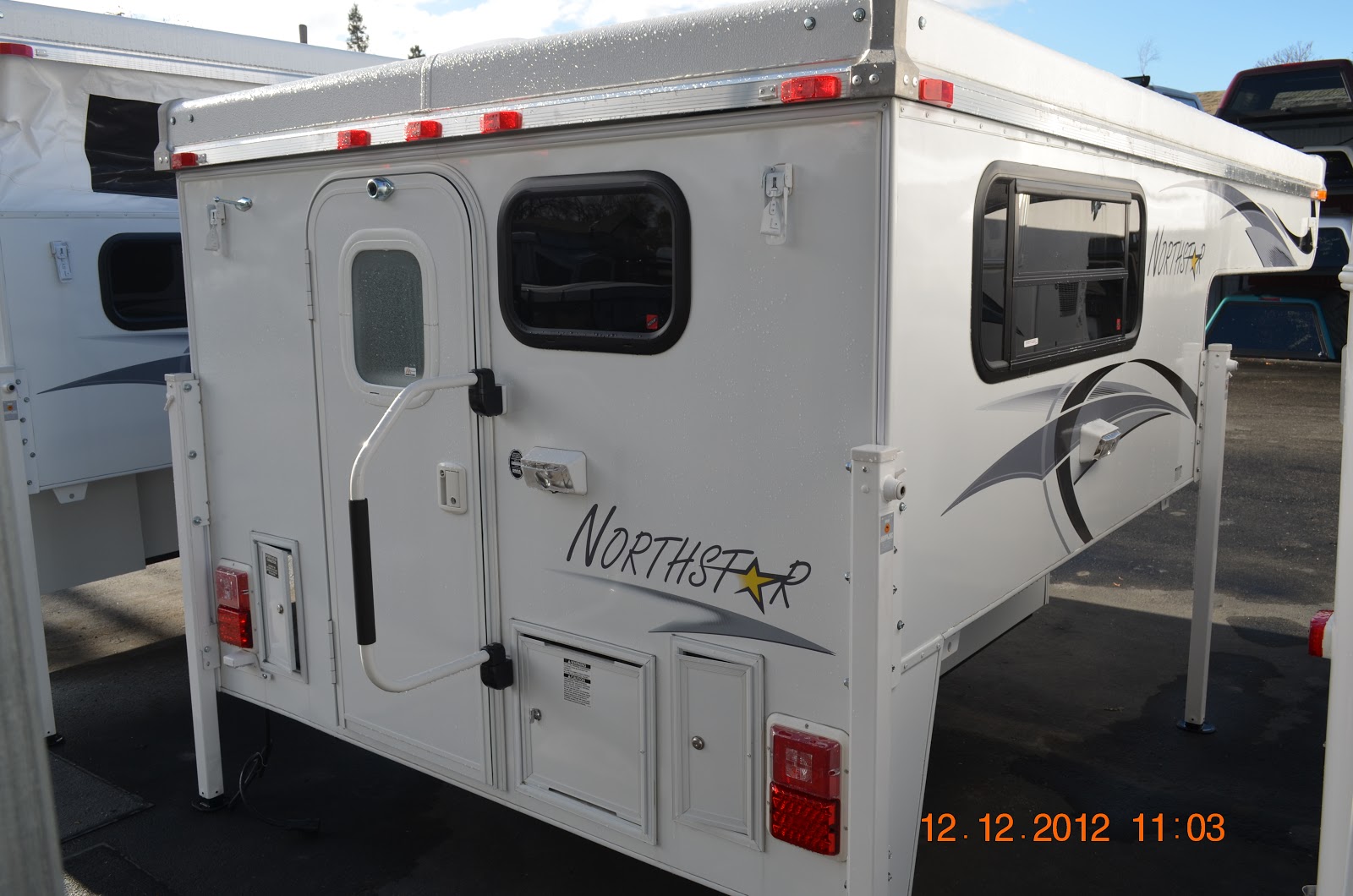

Exterior Rear Lockable Wing Doors
Porch Light & Assist Handle
Exterior Patio Lights (One Each Side)
Fire Extinguisher
Interior Plastic Battery Box
Interior & Exterior 110v Outlets
12v Utility Receptacle
Fantastic Fan w/ Thermostat
2 Interior Fluorescent Lights

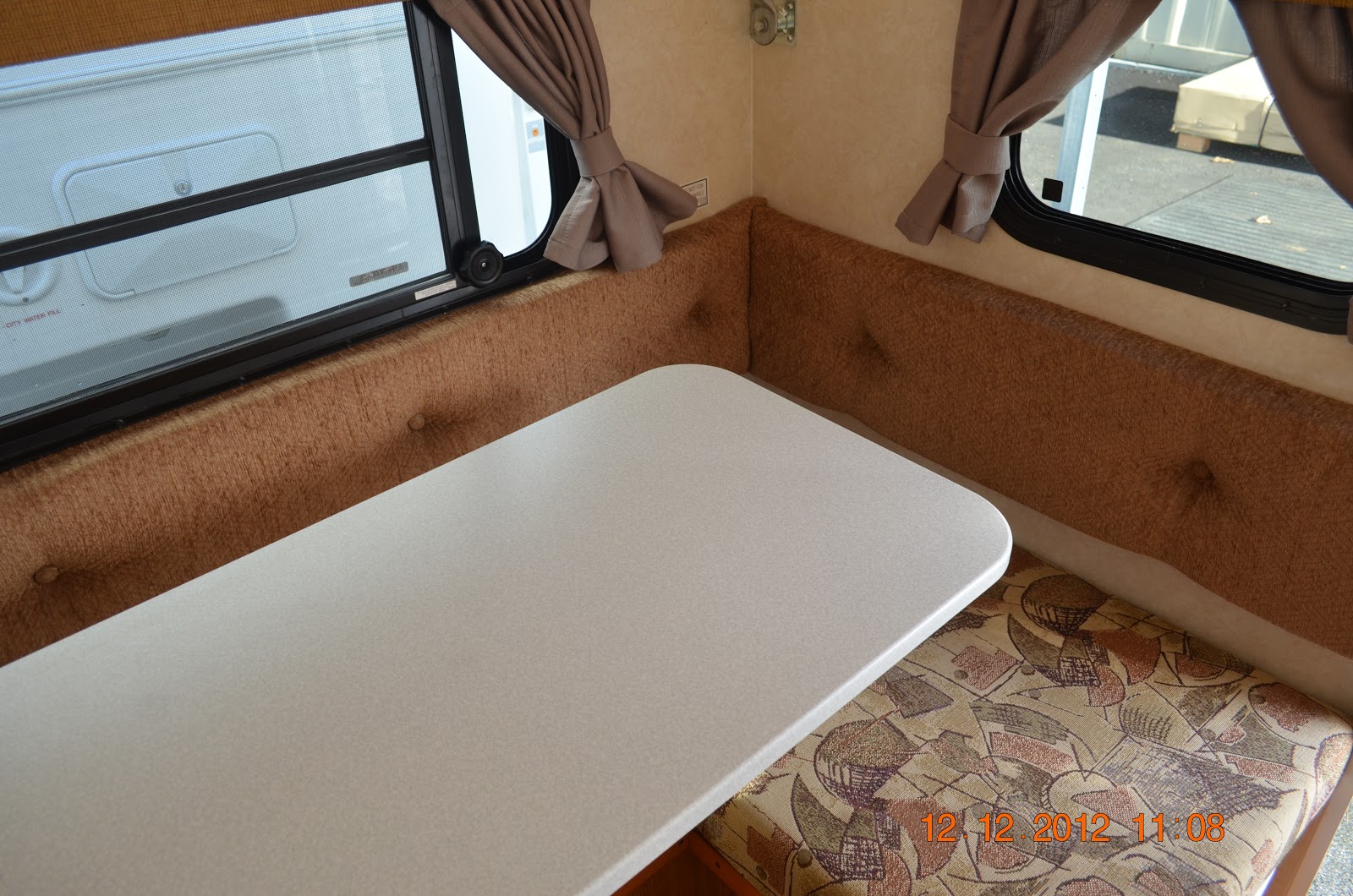

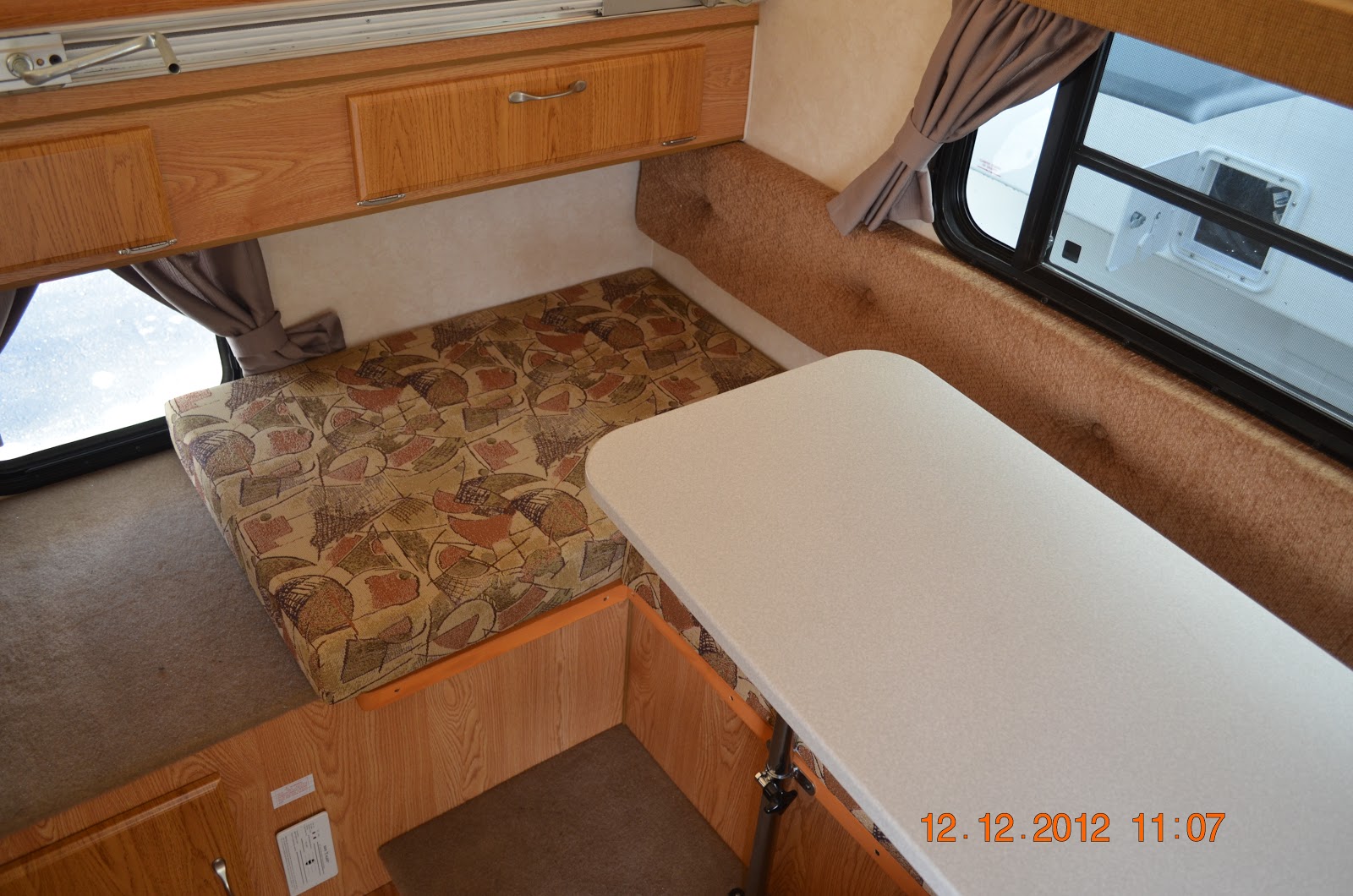

Swing-Away Table Support System
OPTIONS
4 Gal Water Heater w/ Exterior Shower, Bypass, Large Pump
Gray Water Holding Tank, 12 Gallons
Glass Top Stainless Steel Sink w/ Faucet

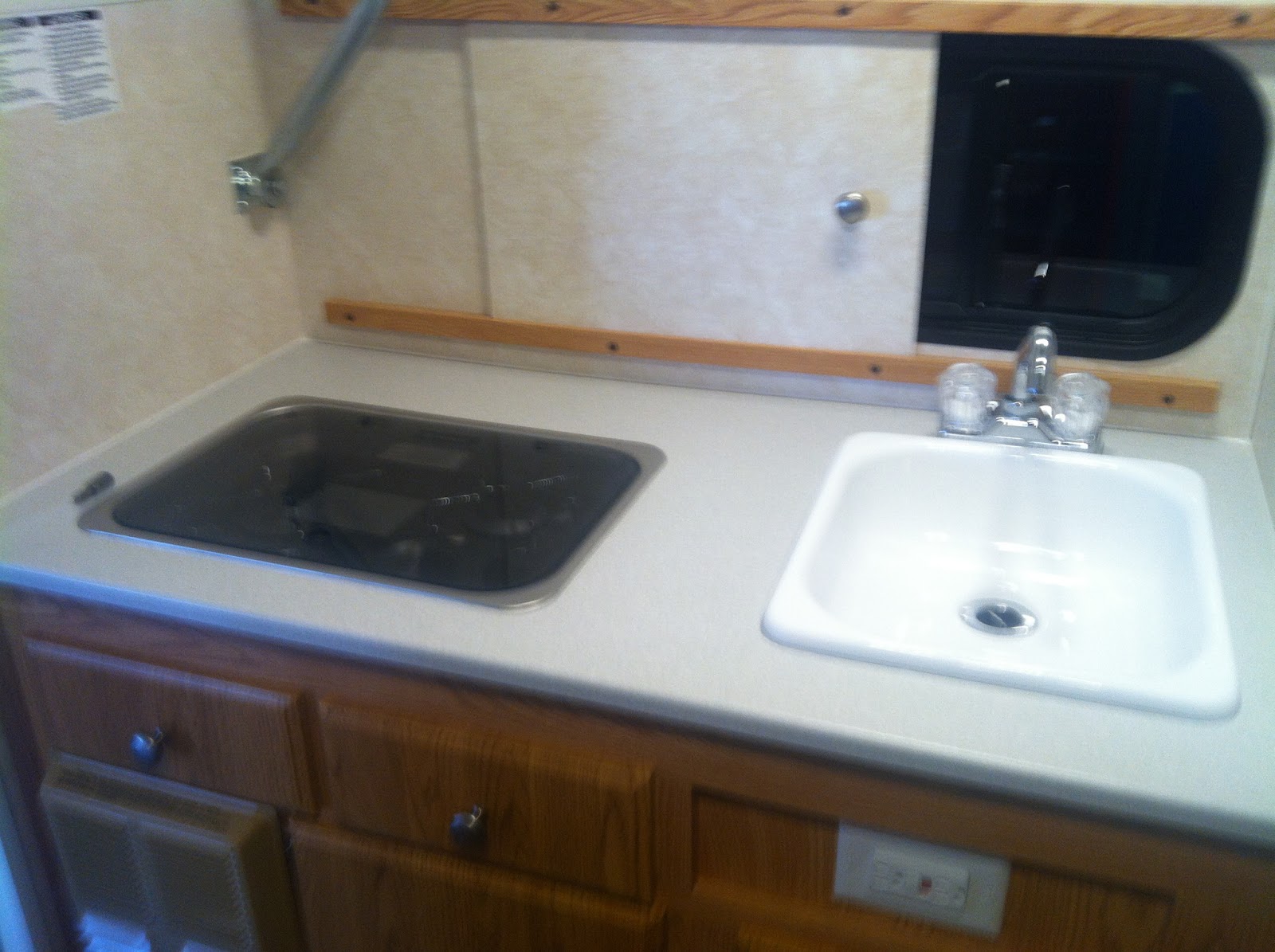

Glass Top Stainless Steel 2 Burner Stove
3.7 Dometic 12v Only Refrigerator
Pre-Wire for Rear Air Conditioner w/ Square Window
Rear Window Air Conditioner (includes #10)
Pre-Wire for Stereo w/ 2 Speakers & Antenna
AM-FM Stereo CD Player w/ 2 Speakers & Antenna (includes #14)
Amplified TV Antenna
Cable TV Inlet
Half Wrap-Around Rear End
Full Wrap-Around Rear End
Pre-Wire for Electric Jacks
Electric 4-Corner Jacks (includes #22)
Overhead Cabinet Over Dinette 48(L) x 7(H) x 9(D)
Laminated Fiberglass Sidewalls w/ Graphics
Extended Cabover (adds 24″ to overall length)
Riser Kit (raises camper 2″)
Fold Out Extra Bed in Dinette
Heki Insulated Exit Vent with Seal
Bargman LED Tail Light Upgrade
ACCESSORIES
3 Step Scissor Step
4 Step Scissor Step
6′ Fiamma Roll-Out Rear Awning
8′ Fiamma Roll-Out Side Awning
10′ Fiamma Roll-Out Side Awning
Arctic Pak Snap-Up Insulation Kit
Bivouac Buddy Portable Shower Enclosure
Boat Rack (Spaced Std at 6′)
Dually Swingout Brackets
Foam Front Window Boot
Privacy Curtain
Rear Ladder
Sink Cover
40 Watt Solar Panel with Control
130 Watt Solar Panel with Control
Northstar Pocket Pod (storage pod that clips to roof lifting bars)
Snap Cover for Entry Door Window
Large Assist Handle
